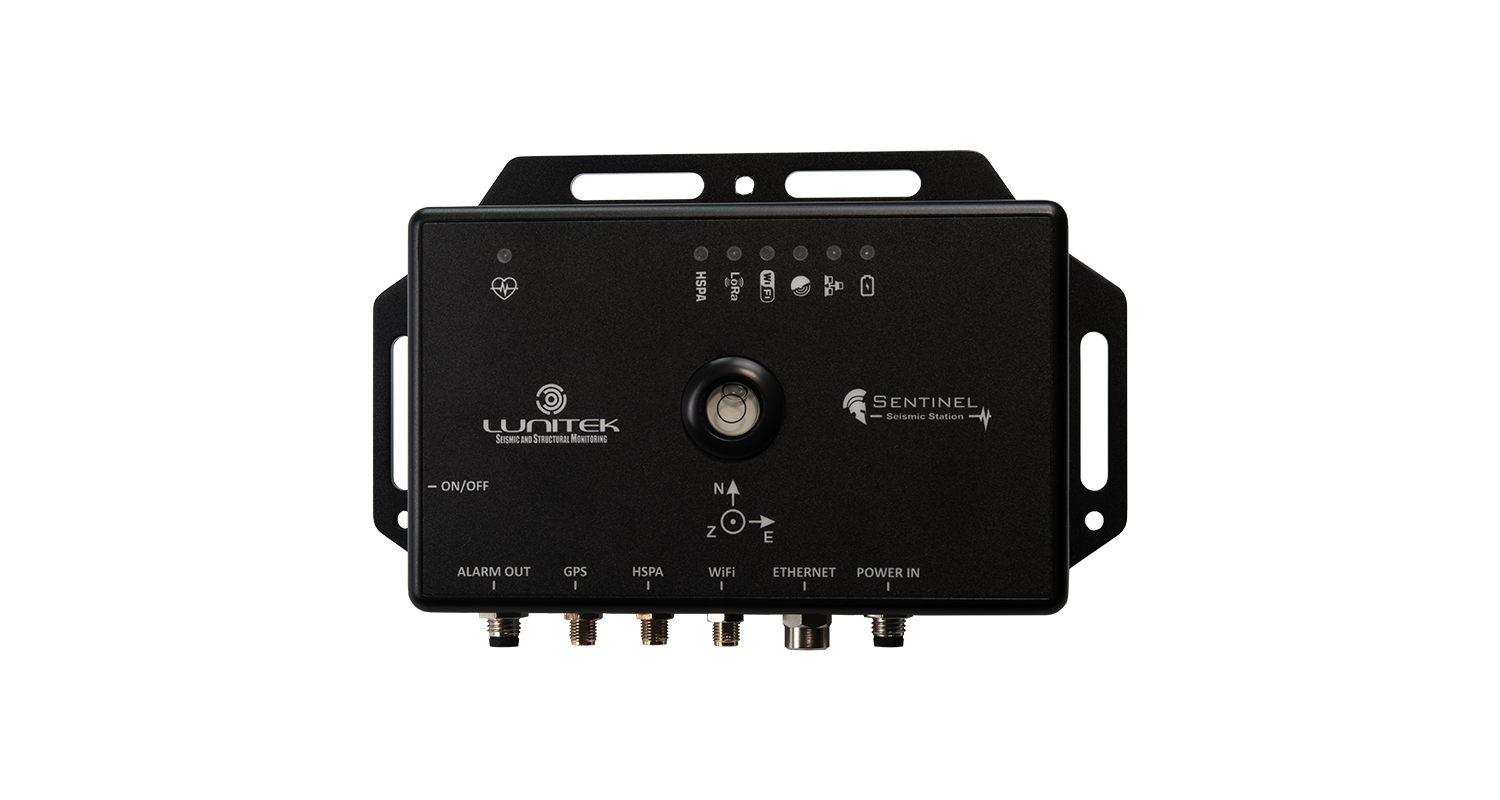

SENTINEL is a premium-quality accelerograph that was conceived for strong motion and structural monitoring with budget-sensitive constraints.
The onboard MEMS triaxial accelerometer is synchronously sampled up to 1000 sps at a resolution of 20bit and exhibits a dynamic range > 85dB and a self-noise < 18µg/√Hz.
The integrated memory bank (32 - 256 GB) allows you to manage a ring-buffer for long continuous recordings as well as event data.
The data format is MiniSEED.
The system implements sophisticated trigger criteria (STA/LTA and threshold) that distinguishes false events (i.e. environment vibrations) from true seismic events.
The internal GNSS receiver allows you to create a network where all the instruments are synchronized with the absolute time.
You can control SENTINEL locally via network connection (LAN or WiFi), and remotely using the integrated 4G modem (optional). The instrument can be used as a “stand-alone” unit to record seismic events in the field or it can be used in a MASTER-SLAVE based monitoring network where multiple instruments are connected to each other; SENTINEL is compatible with both the Triton and Atlas and this can be useful when a superior dynamics are needed, for example, as a near field unit.
Thanks to SeedLink protocol SENTINEL is compatible with most popular seismic analysis software (Seiscomp3, Antelope, Earthworm).
SENTINEL is powered by an external DC source (5 - 16 Volt DC) and it is equipped with its own internal battery (LiPo) which can guarantee an autonomy of 5 hours in case of a blackout. The battery is a standard 18650 and can easily be replaced. The internal HSPA modem (optional) is backed up by the internal battery.
SENTINEL can be equipped (optional) with 3 relays output and used as a seismic switch, to shut down sensitive equipment such as elevators, pumps, gas valve or to drive alarm systems like sirens or lights.

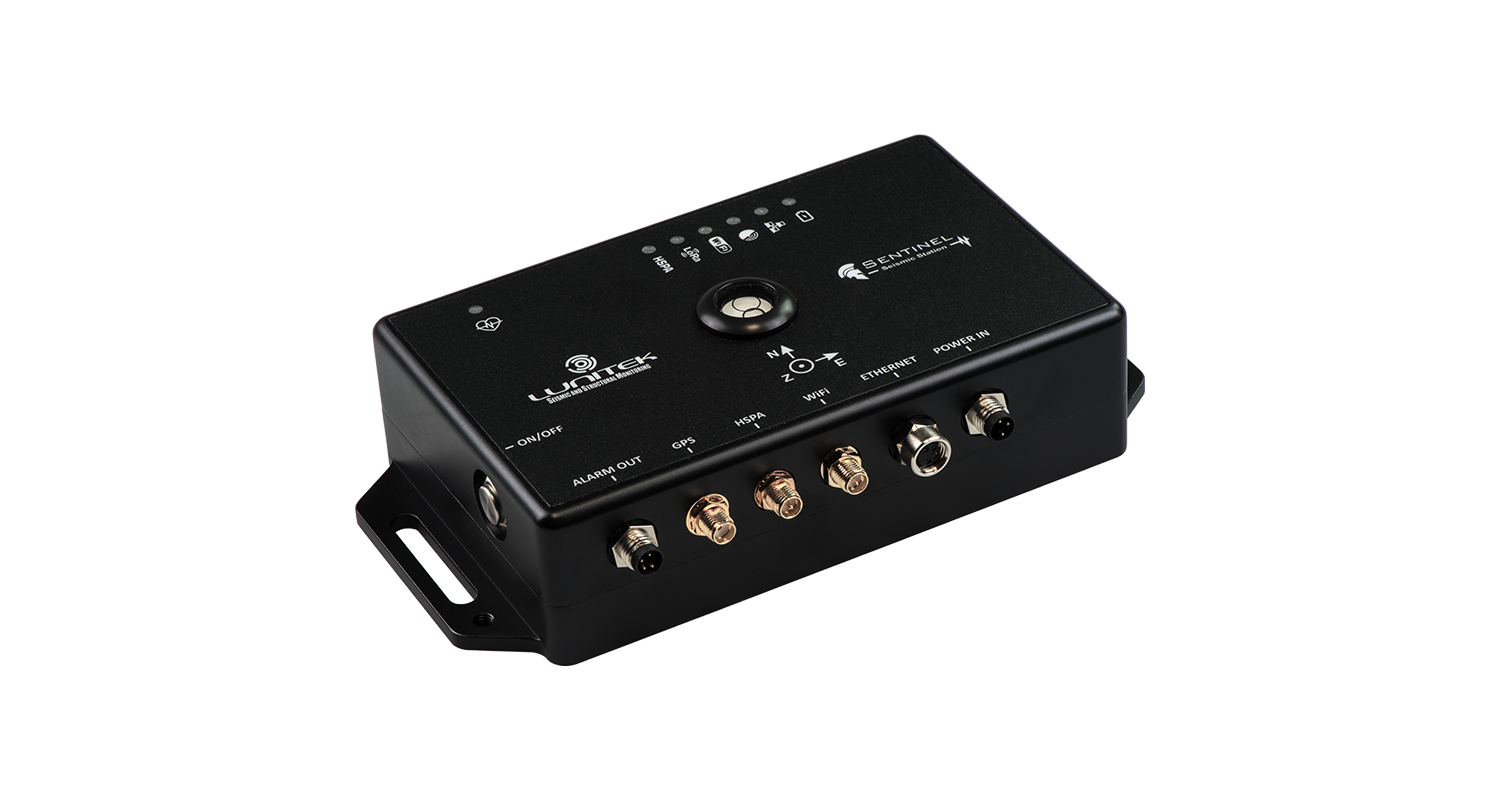

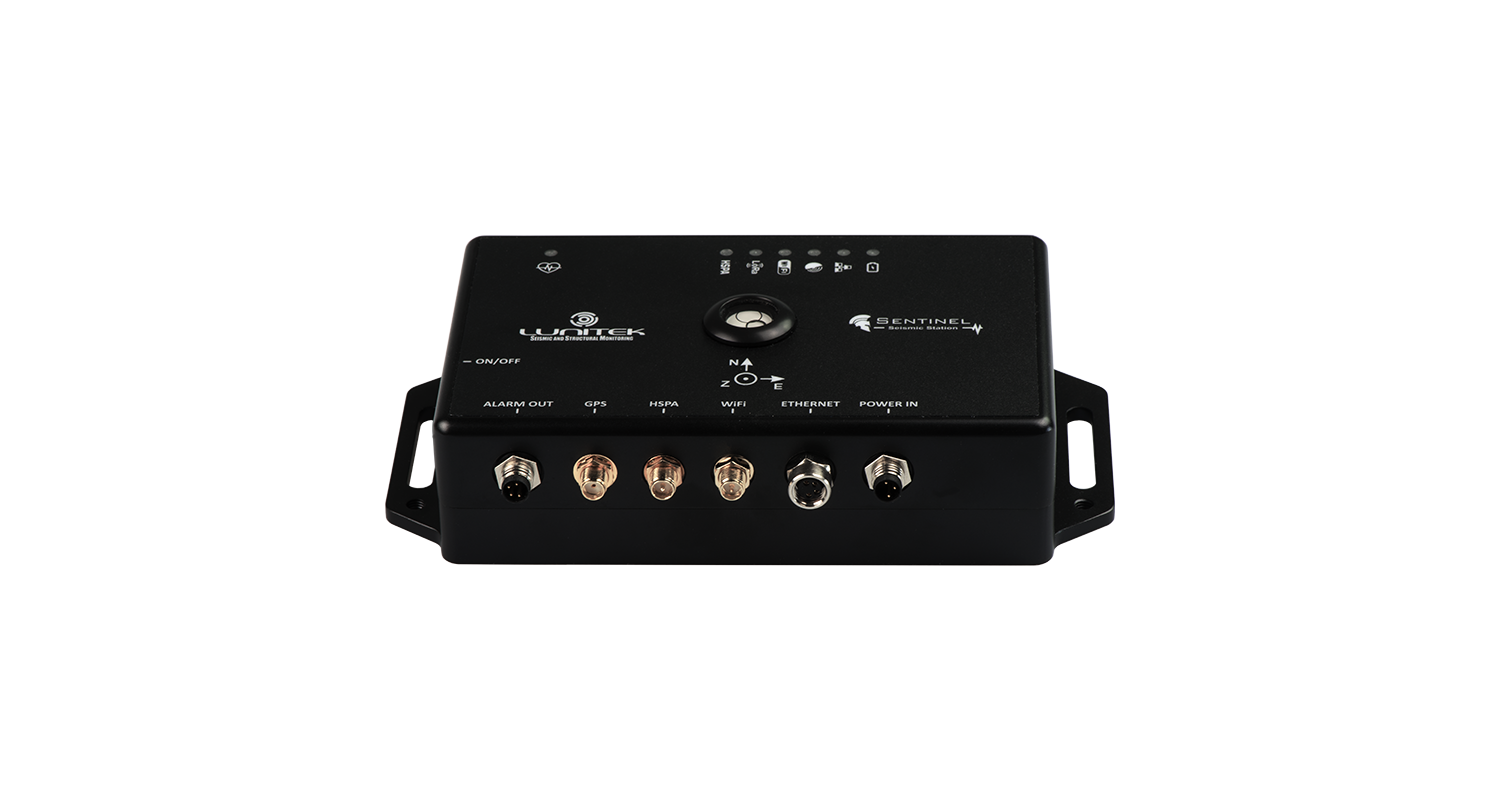

The instrument comes in an anodized aluminum case which is rugged and shock-resistant and thus suitable for field applications. SENTINEL is designed with an adjustable mounting plate in order to simplify the instrument leveling.
Structural health monitoring is one of the main applications of SENTINEL, with tall
buildings, where heavy oscillations excite the structure and the amplitude of
physical signals is considerable, SENTINEL performs well even if its dynamic range
cannot compete with that of TRITON’s.
In a scenario like this, the only high dynamic (and thus more expensive)
accelerograph is placed on the ground floor, where the oscillations of the structure
are negligible.
SENTINEL and TRITON can be interfaced and controlled using QUAKELOGIC's Structural
Health Monitoring software.
A real-time report of the building and a post-earthquake evaluation of the
structural damage can be locally displayed or trasmitted remotely.
The good performance/price ratio makes SENTINEL the ideal choice when building a
distributed system aimed at creating an array of seismic data.
Earthquake early warning (EEW) concept is the rapid detection of earthquakes and the
alerting of people to shaking.
SENTINEL can detect the non-damaging P-waves and transmit the information about
tremors to an alarm center or directly to predefined users before the most damaging
S-waves arrive.
SENTINEL is currently used for an ongoing project with the INGV (National Institute
of Geophysics and Volcanology) which is experimenting with AI algorithms to detect
the earthquake autonomously and quickly.
SENTINEL would be an excelent solution for deactivating sensitive electronic devices
when
a seismic event is detected, closing gas valves or warning people.
You can have TRITON configured according to your needs
WiFi 2.4Ghz comunication radio module.
Thanks to the SoftAP function you can download data and configure your TRITON directly from your device (mobile, tablet, notebook), moreover you can create a network of completly wireless Lunitek devices.
HSPA comunication radio module.
Insert a standard sim card inside your Triton and you can reach it remotely using a VPN.
Carrying handle, useful when using the instrument for dynamic tests, it makes transport easier.
TRITON is available with a professional carrying case.
TRITON Velocigraph models available
Models are available in Triaxial, Biaxial or Monoaxial version
| Inputs | Differential |
| Channels | 3 low noise 24bit |
| Dynamic Range | >136dB@100Sps |
| Sampling Rate | 10,100,200,250,500,1000 Sps |
| Sampling Topology | Synchronous |
| Data Format | MiniSeed or Proprietary |
| Trigger | STA/LTA |
| Timing | Built-in GNSS receiver |
| Timestamp | Encapsulated in data |
| LAN | 10/100 ethernet port |
| WiFi | Optional built-in |
| Cellular Modem | Optional built-in |
| Power Supply | 9-28 Volt DC – power consumption < 2W |
| Back up Battery | Internal LiPo |
| System Autonomy w/o external supply | 33 hours |
| Configuration | Web Interface |
| Compatibility | Earthworm,Antelope,Geopsy,SeiscomP and SeisGram2K |
| Weight | 2Kg |
| IP protection | IP68 |
| Temperature Range | -40°C to +70°C |
* LiPo batteries can be discharged between -20°C to +70°C.
LiPo batteries can be charged between 0°C to +45C°.
If temperature exceeds these limits, the charging process is suspended.
