QuakeLogic Small Scale Shake Table Catalog
Advanced solutions for seismic simulation, testing, and monitoring.
At QuakeLogic, we fuse cutting‑edge innovation with unparalleled expertise to reshape seismic testing. Our advanced Uniaxial, Biaxial, and 6‑DOF shake tables—crafted for uni versities, research labs, and breakthrough engineering—deliver the performance you need to push boundaries and spark discoveries.
Rigorously CE‑certified and engineered with robust IP‑based technology, our systems come with sleek, intuitive Windows‑based software at no extra cost—empowering you with precision and reliability under pressure.
Uni‑Axial Shake Tables

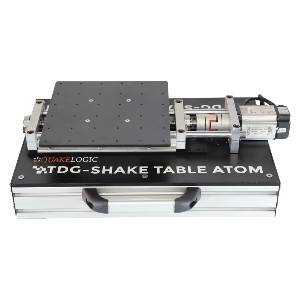

ATOM‑25
Servo Motor
Top Table Dimensions: 25×25 cm
Capacity: ±1 g @ 50 kg
Stroke: ±125 mm (250 mm total)
Lead time: 3 weeks
Software: EASYTEST (Windows‑based) included

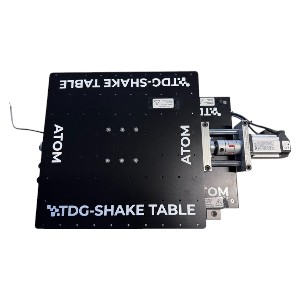

ATOM‑40
Servo Motor
Top Table Dimensions: 40×40 cm
Capacity: ±1 g @ 50 kg
Stroke: ±125 mm (250 mm total)
Lead time: 4 weeks
Software: EASYTEST (Windows‑based) included

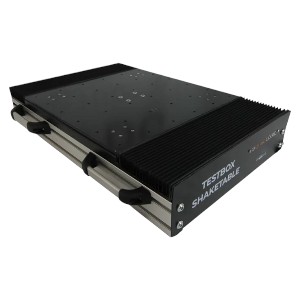

DESKTOP‑V2
Servo Motor
Top Table Dimensions: 50×50 cm
Capacity: ±2 g @ 50 kg (1 g @ 100 kg)
Stroke: ±100 mm (200 mm total)
Lead time: 6 weeks
Software: EASYTEST (Windows‑based) included

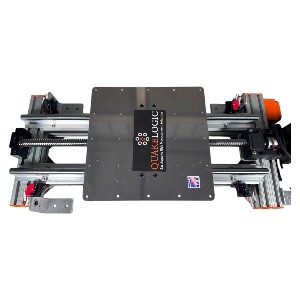

SHAKEBOT
Servo Motor
Dimensions: 31×81 cm; Top‑plate: 28×28 cm
Capacity: ±1 g @ 50 kg
Max Velocity: 0.6 m/s
Stroke: ±110 mm (220 mm total)
Lead time: 4 weeks
Software: GUI & Python package (ROS supported)
SHAKEBOT‑40
Servo Motor
Dimensions: 31×81 cm; Top‑plate: 40×40 cm
Capacity: ±1 g @ 50 kg
Max Velocity: 0.6 m/s
Stroke: ±110 mm (220 mm total)
Lead time: 4 weeks
Software: GUI & Python package (ROS supported)
Bi‑Axial Shake Tables

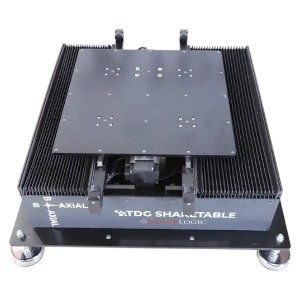

BI‑AXIAL TANDEM
Servo Motor
Top Table Dimensions: 75×75 cm
Capacity: ±1 g @ 50 kg
Max Velocity: 0.6 m/s
Linear Resolution: 0.1 mm
Stroke: ±100 mm (200 mm total)
Max Frequency: 25 Hz
Software: GUI & Python package (ROS supported)

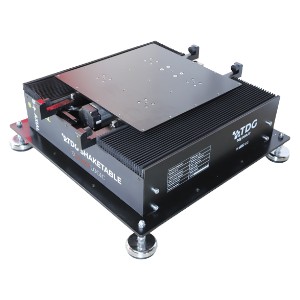

BI‑AXIAL STANDARD
Servo Motor
Top Table Dimensions: 75×75 cm
Capacity: ±2 g @ 50 kg
Stroke: ±100 mm (200 mm total)
Software: EASYTEST (Windows‑based) included

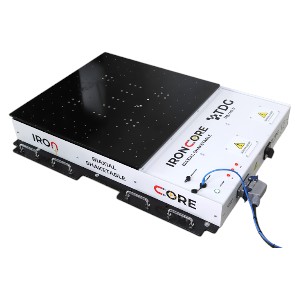

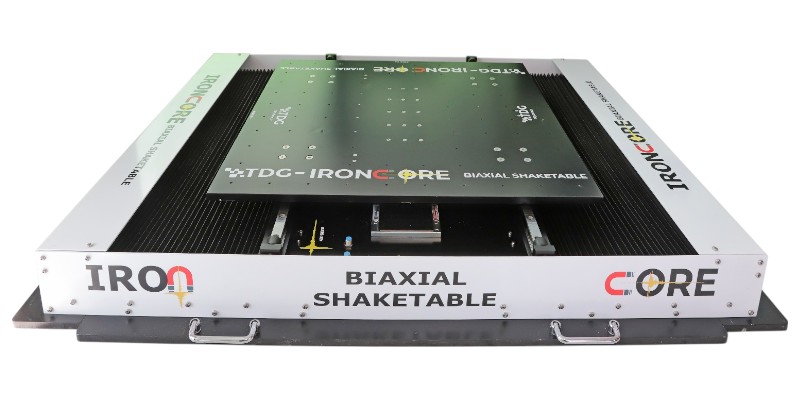

BI‑AXIAL IRON CORE
Linear Motor
Top Table Dimensions: 75×75 cm
Capacity: ±2 g @ 50 kg
Stroke: ±125 mm (250 mm total)
Software: EASYTEST (Windows‑based) included
6‑DOF Shake Tables

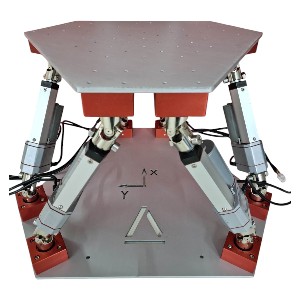

MOTIONMASTER‑6
6 Servo Actuators
6‑DOF system
Top Table Diameter: 320 mm
Payload: 12.5 kg
Velocity: 40 mm/s
Stroke: 200 mm total
Software: GUI, API (Python/Matlab), LabVIEW code included
MOTIONPRO‑6
6 Servo Actuators
6‑DOF system
Top Table Dimensions: 200×200 cm
Payload: 600 kg
Stroke: ±100 mm (200 mm total)
Software: EASYTEST (Windows‑based) included
Recommended Accessories

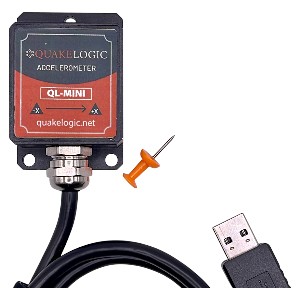

QL-MINI Triaxial MEMS Accelerometers + Inclinometers
$695 each – includes QL‑VISIO software, USB hub, and extension cables.
View Product

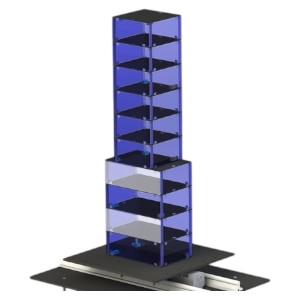

Modular Plexiglass Model Structure
$995. Ideal for educational and demo purposes – recommended with 5 QL‑MINI sensors.
View Product

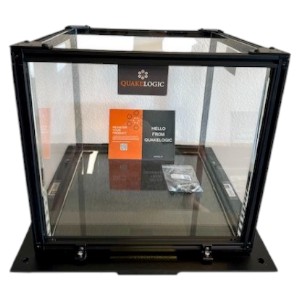

GEOBOX (Plexiglass Sandbox)
$1,495. For geotechnical demos, including liquefaction and slope stability.
View Product

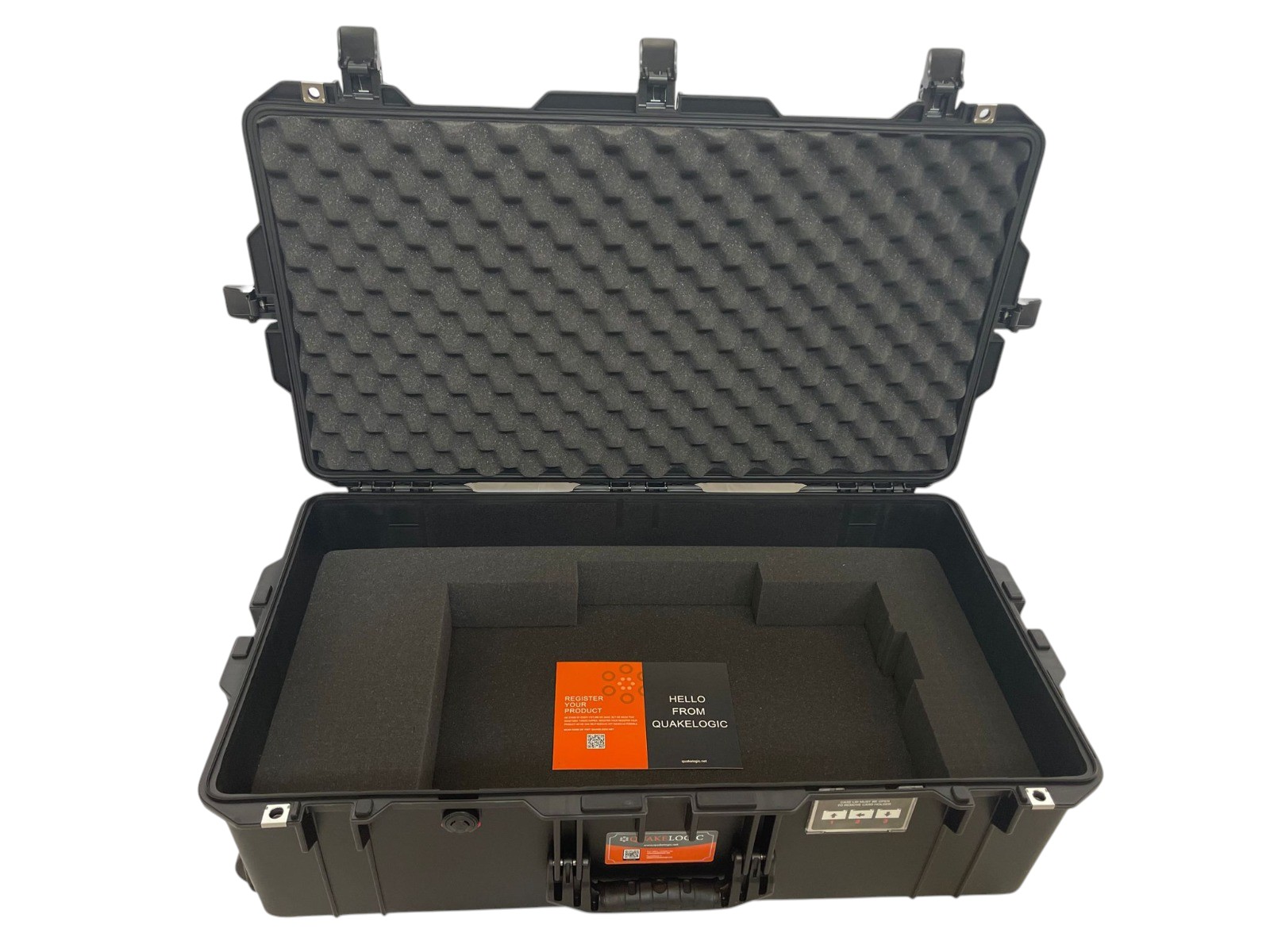

Transport Case for ATOM
$995. Light-weight, rugged hard case with wheels for easy transport and secure storage. Custom options available for other shake tables. Please contact us for pricing.
View ProductNeed a Quote or More Info?
If you would like detailed specifications, delivery timing, or guidance on the best system for your research, please reach out. Our team is here to help.
