INFRASOUND SENSORS

ACCESSORIES

MB3a/MB3d power cable

3 pin Fischer connector to fast on plug, 2 wires, 1.5 mm², Ø 9.3 mm

Standard length : 3 meters

Signal cable

18 pin Fischer connector to not wired, 18 wires AWG24 Ø 8.48 mm shielded.

Standard length : 3 meters

GPS cable

Coaxial TNC to TNC KG58C/U 50 Ω PVC, Ø 4.93 mm shielded.

Standard length : 5 meters

MB200x power cable

Fast on plug to JUPITER connector, 2 wires, 1.5 mm², Ø 4.93 mm

Standard length : 3 meters

PC/USB cable

18 pin Fischer connector to USB 4 wires AWG25 shielded.

Standard length : 1.5 or 3 meters

MB3d serial cable

18 pin Fischer connector to DB9, connector 3 wires AWG24 shielded.

Standard length : 3 meters

Magnet adjustment cable

18 pin Fischer connector to banana plugs designed to adjust the magnet position (multimeter required).

GPS cable

Coaxial TNC to TNC KG58C/U 50 Ω PVC, Ø 4.93 mm shielded.

Standard length : 5 meters

Magnet adjustment cable

18 pin Fischer connector to banana plugs designed to adjust the magnet position (multimeter required).

Magnet Wrench

Specific wrench designed to adjust the magnet position.

TNC Male to TNC Male Right Angle Adapter

Right angle adapter to connect directly the GPS antenna PROCOM 2000B to the MB3d, without cable.

RS232 to Ethernet converter for MB3d

The RS232 to Ethernet converter allows remote retrieval of your MB3d miniSEED files through secure FTP access.

GPS antenna PROCOM 2000B

Flat-pack GPS-antenna for fixed installations. Full hemispherical coverage. Built-in high gain, low noise amplifier. Right-hand circular polarization (RHCP). 3 V or 5 V supply voltage. DC supply via RF-connector. EMC tested to IEC 801 and IEC 255. Provided with TNC (female) connector. ROHS compliant.

Pelicase 1430 (1-2 sensors)

Pelicase 1430 with adapted foams available in 1 sensor or 2 sensors (MB3a or MB3d).

Dimensions : 345 x 146 x 297 mm

Weight : 2.59 Kg

Pelicase 1650 (6 sensors)

Pelicase 1650 with adapted foam specificly designed to carry 6 MB3a and cables. Equipped with one telescopic handle and 2 wheels.

Dimensions : 724 x 441 x 267 mm

Weight : 13.47 Kg

Screwpack

Plastic packaging for one Mb3a or Mb3d, protected into specific foams. Not watertight, crush-proof and dust-proof, water, oil-projection and humidity resistant.

Standard length : 5 meters

Carton box

Carton box specially designed for MB3a and MB3d transportation.

Battery Yuasa

12V BATTERY

12Ah /12V Lead Acid

97.5 X 98 X 151 mm / 4kg

Quick Connect

Charge Current Max: 3A

Cyclic Charge Voltage

Max:15V

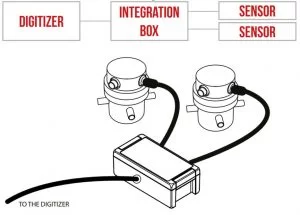

Interconnection boxes
