SERVO TESTING MACHINES

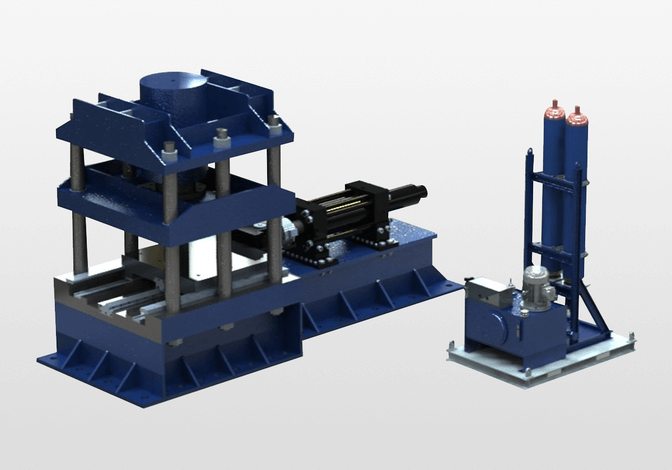

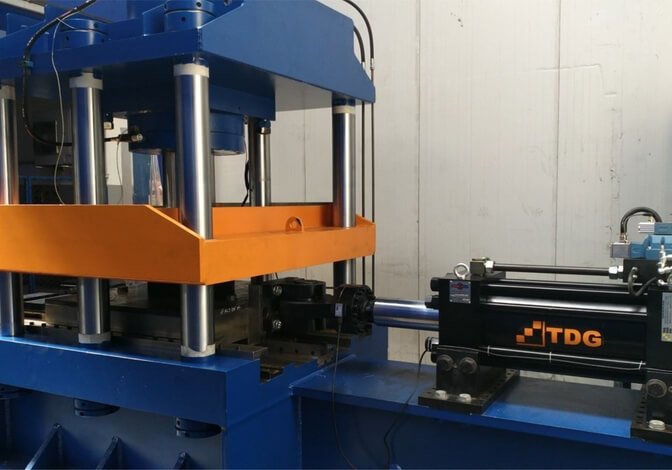

Seismic Isolator Test Machine


QuakeLogic offers custom solutions for Seismic Isolator and Bearing Tests with varying specimen size, displacement, speed, vertical & horizontal force capacities.

Using seismic isolators are getting more common all around the world and they are required to be tested before actual installation. Very few laboratories have the capacity for such tests, resulting the manufacturers wait for long periods to get test services.

  • 2000 Ton Vertical Force
  • 200 Ton Horizontal Force
  • 250 mm/s Horizontal Speed (Contact for higher speed options)
  • ±600 mm Horizontal Displacement
  • 1 micro-meter Position Resolution
  • Special Linear Bearing up to 0.0005 Friction Coefficient
  • Vertical Force Holding During Test
  • Special Design Against Torsion and Fatigue Effects
  • EN15129 Compatible Easy to Use Test Software

APPLICATIONS

Seismic Isolator Test Machine
SEISMIC ISOLATOR TESTS
BEARING TESTS
RUBBER AND PENDULUM TYPE ISOLATOR TESTS
SEISMIC ISOLATOR FACTORY R&D TESTS
SEISMIC ISOLATOR PROTOTYPE TESTING
