SMALL SCALE SHAKETABLES

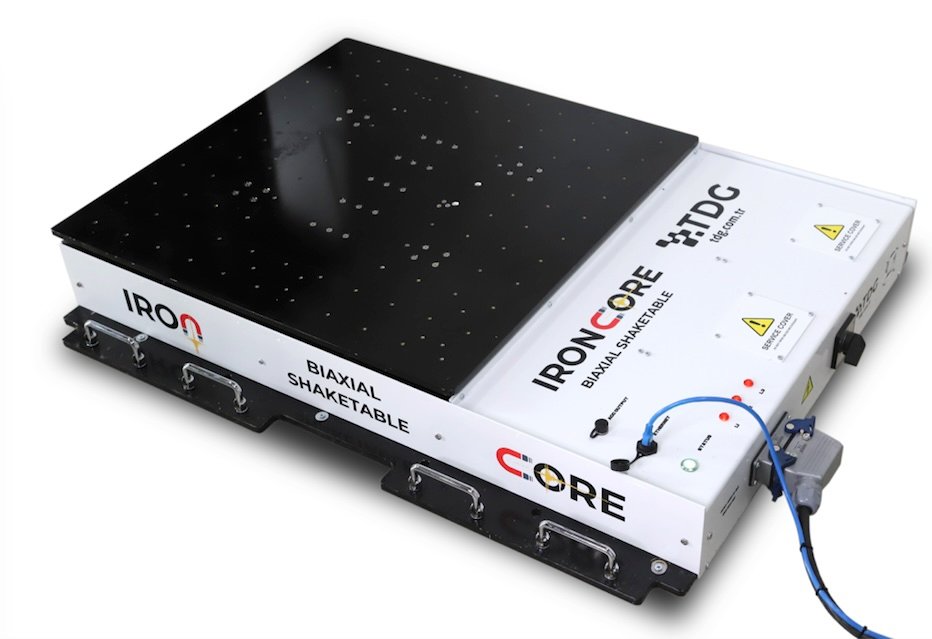

IRON CORE BI-AXIAL SHAKETABLE


🚀 We're thrilled to announce that CALTECH, a leading name in scientific research and education, has recently become our latest esteemed client for the Iron Core Bi-Axial Shake Table. This marks a significant milestone in our journey towards revolutionizing earthquake simulation technology.

The shake table we offer is compact and portable, ideal for simulating earthquakes. It can replicate real earthquake recordings or generate custom waveforms like sine, triangle, boxcar, and more. Users can define their own acceleration, velocity, or displacement profiles. This system is seamlessly operated with the intuitive EASYTEST control software.

This shake table is a popular tool in Civil Engineering departments and is also widely used for experiments in structural mechanics, earthquake engineering, soil dynamics, and geological studies. It is additionally useful for calibrating accelerometers and seismic instruments.

Over the past decade, this product has become a preferred choice in the market due to its affordability, versatility, and practicality. It is actively utilized in numerous university laboratories across the United States, Spain, the Netherlands, Poland, India, Taiwan, Turkey, and Thailand.


TECHNICAL FEATURES

Bi-axial Iron Core shake table has the following technical features

  • Bi-Axial - 2 Lateral Degree of Freedom
  • Linear Motor
  • Closed-Loop PID Control
  • Capacity ± 2g @ 50 kg
  • Top Table Dimensions 75x75 cm (L x W)
  • Stroke ±125 mm
  • Operational Frequency up to 15 Hz
  • High precision linear guideway with low friction.
  • Earthquake Simulation (Arbitrary User-Defined Waveforms)
  • Standard Waveforms - sin, triangle, boxcar, etc.
  • Easy Setup, Plug & Play
  • 480 V
  • High Industrial Quality, Virtually Maintenance Free

APPLICATIONS

IRON CORE BI-AXIAL SHAKETABLE
CIVIL & EARTHQUAKE ENGINEERING LABORATORIES
STRUCTURAL MECHANICS, MODE SHAPES
UNDER GRADUATE AND GRADUATE EDUCATION PURPOSE
EARTHQUAKE / CIVIL / SOIL / GEOPHYSICS ENG. SMALL SCALE TEST
ACCELEROMETER CALIBRATION
SEISMIC / EARTHQUAKE RESISTANT DESIGN COMPETITIONS
