SMALL SCALE SHAKETABLES

BI-AXIAL TDG-SHAKETABLE

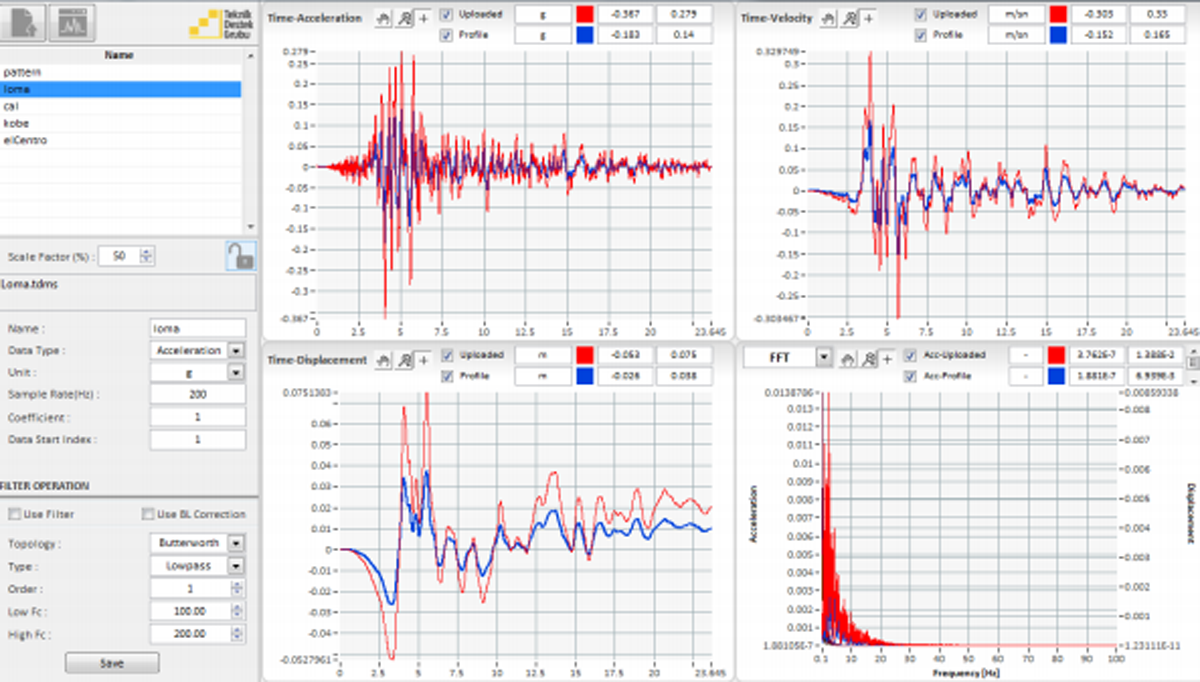

BI-AXIAL TDG-SHAKETABLE is mobile size. It can simulate earthquakes using real records as well as operate waveforms such as sine, triangle, etc., and any user-defined acceleration or displacement profile. The system is fully controlled via user-friendly EASYTEST control software.

It's commonly used in Civil Engineering departments. It can also be used for structural mechanics, earthquake, soil, and geological engineering tests and calibrating accelerometers and seismic instruments.

The product has become the market choice in the last decade, due to its price advantage, flexibility and practical use. It's actively being used in many university laboratories in Turkey and several countries all over the world, such as USA, Spain, Netherlands, India, Taiwan, Thailand.

Comparisons with Quanser


COMPLEMENTARY MEASUREMENT SYSTEM

TDG-SHAKETABLE is generally used in combination with a measurement set in order to capture the acceleration and displacement reaction of the test model.

  • Bi-Axial - 2 Lateral Degree of Freedom
  • Highest Control Resolution with Servo Motor
  • Closed-Loop PID Control
  • Up to 100 kgf payload (@ ±1 g)
  • Up to 5g
  • ±100 mm Stroke
  • Operational Frequency up to 15 Hz
  • High precision linear guideway with low friction.
  • Earthquake Simulation (Arbitrary User-Defined Waveforms)
  • Standard Waveforms - Sine, Triangle, Etc
  • Easy Setup, Plug & Play
  • 220 V AC Mains Voltage
  • High Industrial Quality, Virtually Maintenance Free

APPLICATIONS

BI-AXIAL TDG-SHAKETABLE
CIVIL & EARTHQUAKE ENGINEERING LABORATORIES
STRUCTURAL MECHANICS, MODE SHAPES
UNDER GRADUATE AND GRADUATE EDUCATION PURPOSE
EARTHQUAKE / CIVIL / SOIL / GEOPHYSICS ENG. SMALL SCALE TEST
ACCELEROMETER CALIBRATION
SEISMIC / EARTHQUAKE RESISTANT DESIGN COMPETITIONS
