ACTUATORS & SHAKE TABLES

DYNAMIC ACTUATORS


• Structural Mechanic - Dynamic Tests
• Seismic Isolator Tests
• Cyclic Loading / Fatigue Tests
• Shake Tables

Servo-Hydraulic Loading Systems

The system is developed by the pioneers of servo-hydraulic loading systems in Turkey, TDG, and is being used for general purpose structure and earthquake tests.

The system can be customized for different force and speed capacities, and installed as a turnkey solution including hydraulic actuator, hydraulic power pack, electronic control system and software.It is possible to use 2 or more actuators in seperate or synchronized modes.

20 / 50 / 100 tonf or higher
Full Control Over Software - Easy and Flexible
Position Control&Force Control – Instant Transition
Load Cell and Position Transducer Integrated to the Actuator
Position Sensitivity up to 0.5 Microns
Continuous Technical Support

Multi Axes System Designs

Synchronization Between Axes
Force/Displacement
Special Test Scenarios

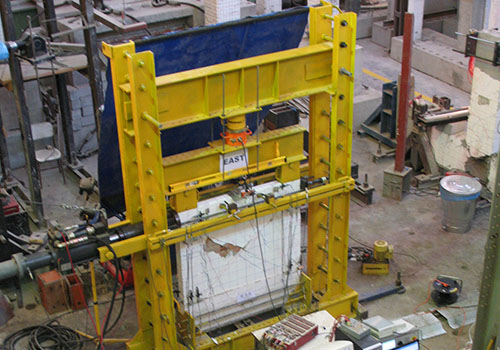

Dynamic Actuators

Capacity: Up to 30 tonf dynamic force
Frequency: Up to 30 Hz

Applications:

Structural Mechanics – Dynamic Tests
Seismic Isolator Tests
Cyclic Fatigue Tests
Shake Tables

Standart 20 tonf Dynamic Loading System

ACTUATOR
Force Capacity 20 ton
Stroke ± 350 mm
Max Velocity 900 mm/sec
Position Feedback SSI Encoder
Position Sensitivity 2 microns
Force Feedback 20 Ton Load Cell
HYDRAULIC POWER PACK
Flow 160 l/min
Pressure 210 bar
Installed Power 80 kW
Tank Volume 800 l
ELECTRONIC CONTROL SYSTEM
Control Resolution 16 bit, analog output
Control Type Closed Loop PID Control with Special Motion Controller
Feedback Types SSI, Quadrature and Analog
