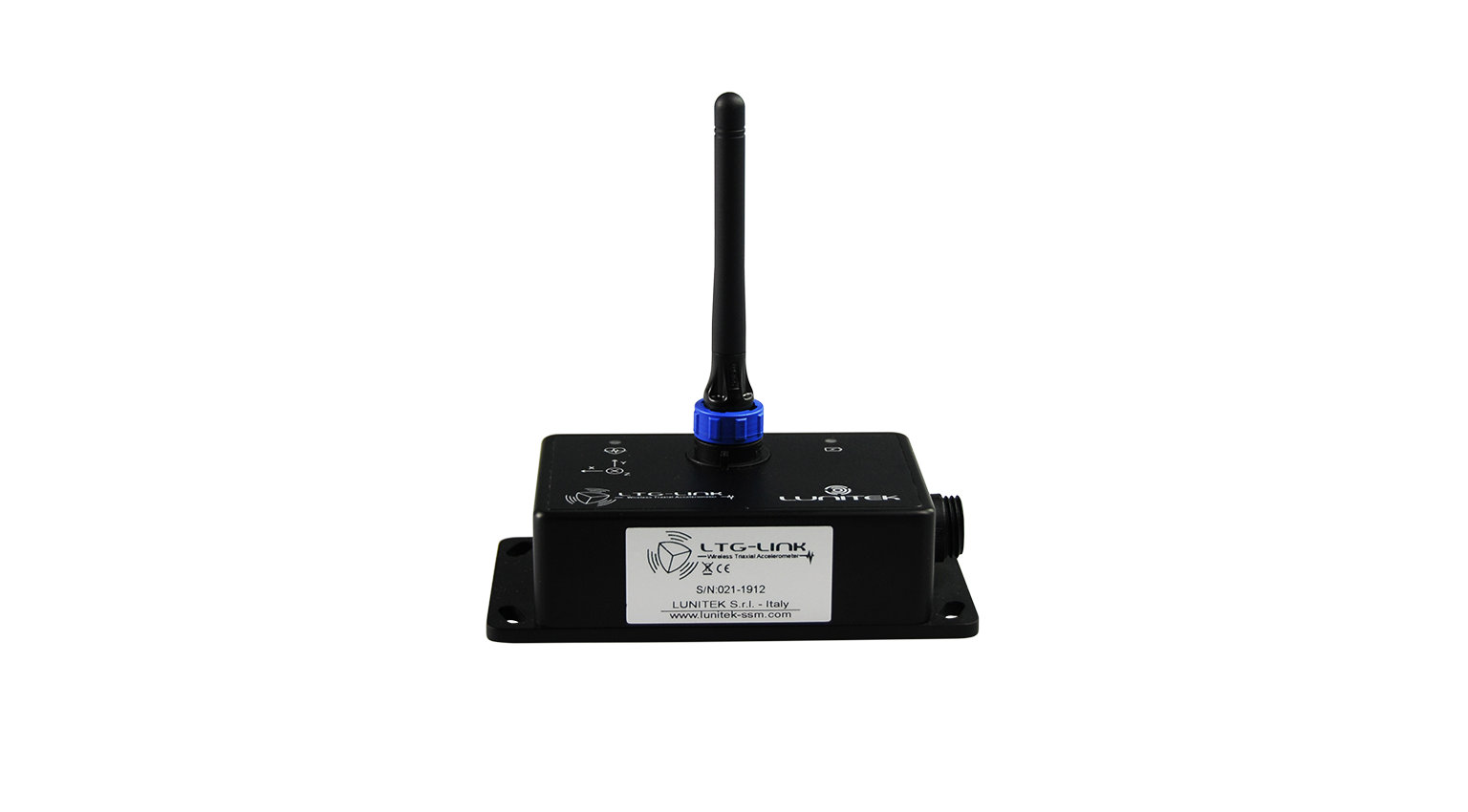

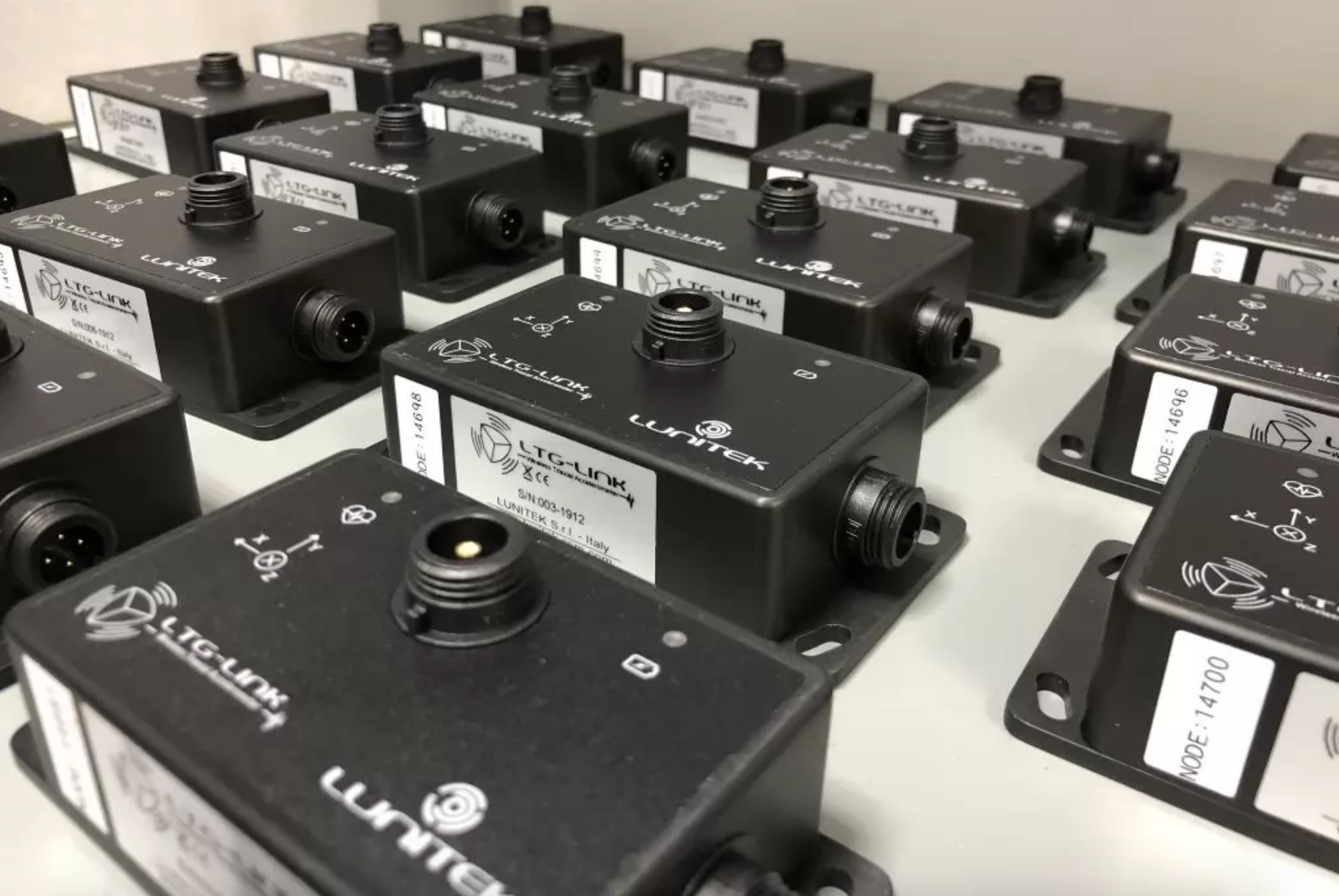

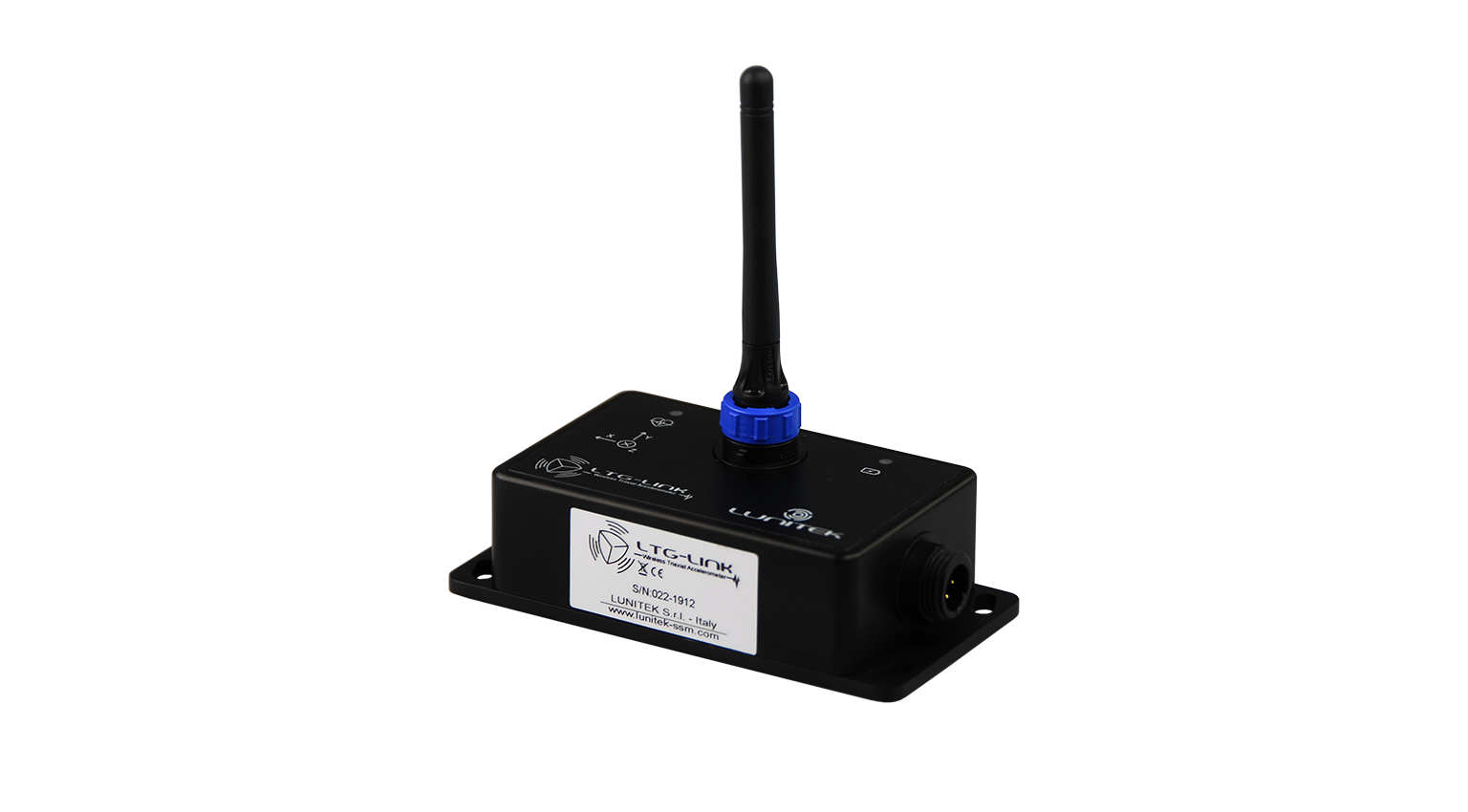

LTG-Link node is an accelerograph for structural health monitoring.
The most innovative characteristic of the sensor is that it is completely wireless.
The monitoring system is designed so that a central aggregator completely wirelessly
synchronizes the nodes to UTC time and collects data.
The on-board triaxial accelerometer allows high-resolution data acquisition with low
noise (25 µg/√Hz) and low drift. Additionally, LTG-LINK node embeds
a battery which
is recharged by a small photovoltaic panel. In bad weather the node can keep on
working for up to 30 days.
EASY TO USE

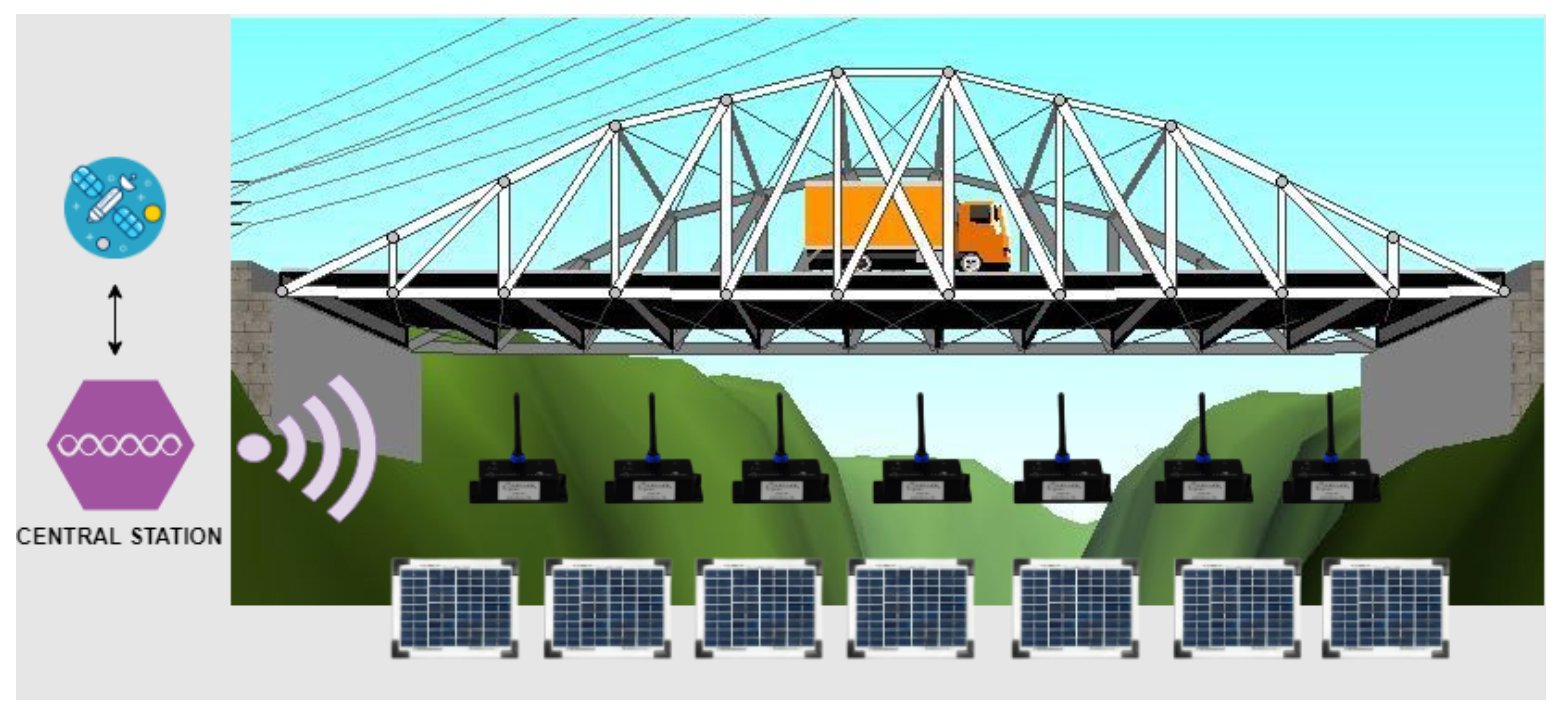

The Wireless Sensor Network (nodes and aggregator) enables simultaneous, high-speed
sensing and data aggregation from scalable sensor networks.
Users can easily program nodes for continuous, periodic burst, or event-triggered
sampling using the software included. The optional web-based cloud interface
optimizes data aggregation, analysis, presentation, and alerts for sensor data from

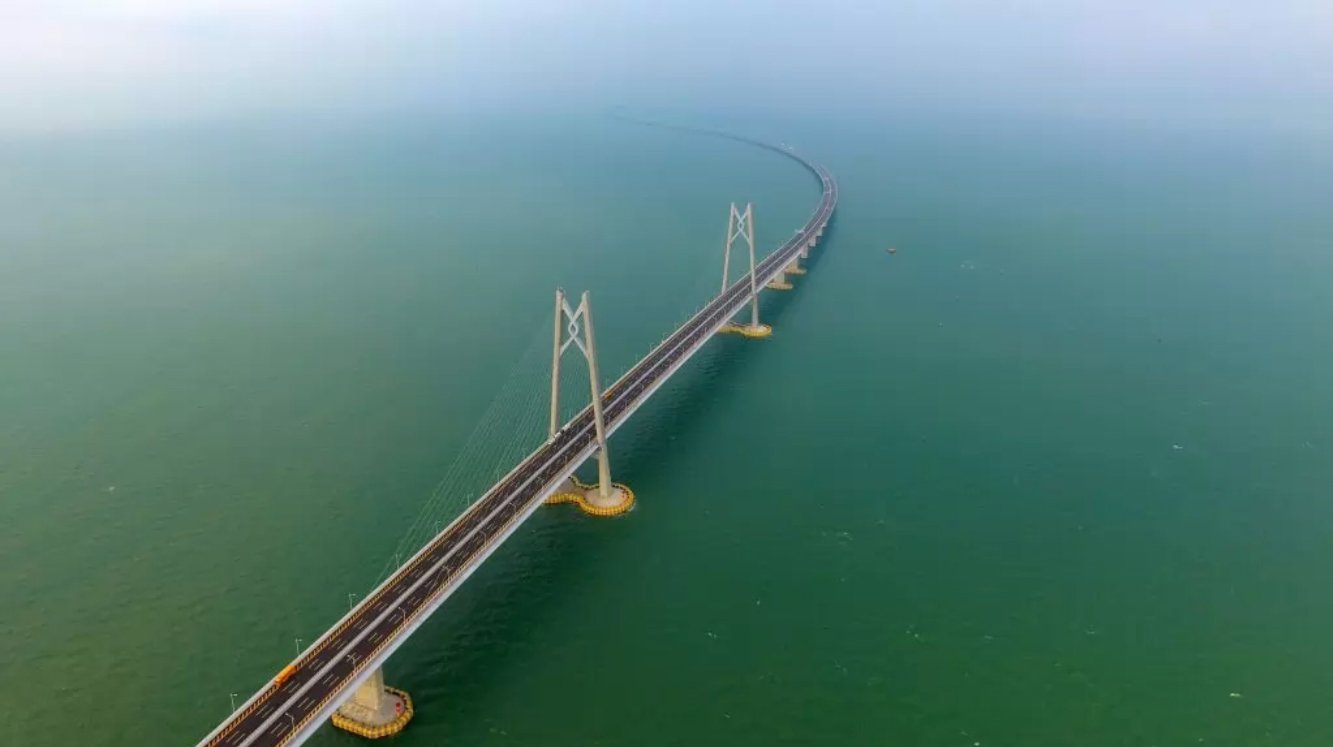

IDEAL FOR DIFFICULT TO ACCESS STRUCTURES WITH NO
Our wireless sensing system is ideal for test and measurement and remote
